Product parameters


ModelBRC330C90022DCR22.0Ω
Sensitivity98.5dB@1000HzMPO @ peak124.0dB
Nominal Drive115mV RMSAcoustic Load10.0mm x 1.0mm tubing into IEC711
Port Location12CBack ventNO
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

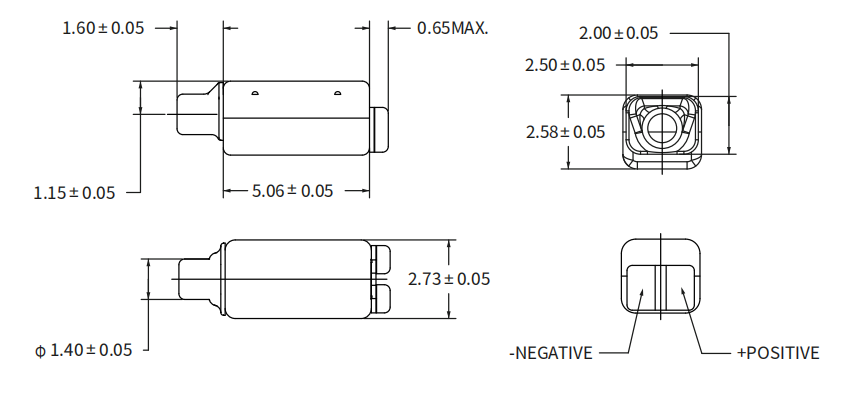

Appearance Size

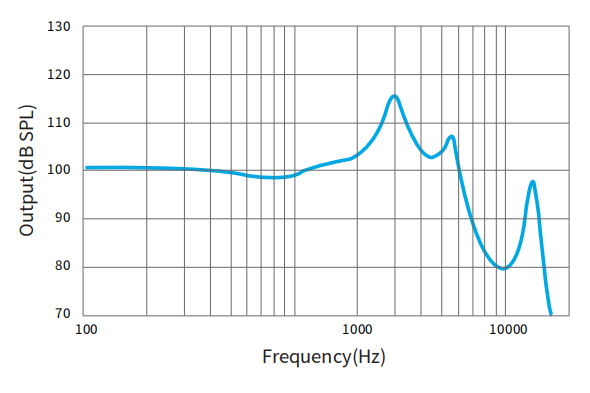

Frequency curve
